Dedicated to work in industrial environment
LDX-04E series displays are designed to work in industrial automation systems. With the display you can show any text and graphic signs. The display design (driver + division into LED panels) allows you to build displays of any size.
Display operating modes
Mode I: Display of digits
(e.g. weight values from a scale) and any text (including text scrolling function).
Mode II: Traffic control
The display can be equipped with an additional panel for displaying
red and green light (8x8 cm - the size of a given colour area).
Any graphic signs can also be displayed on the display.
Advantages of LDX-04E displays
- the highest quality LEDs guaranteeing excellent visibility even in bright sunlight and many years of work without compromising the quality of the information displayed.
- modern design of a LED driver making it possible to build displays of any size
- additional PC software for managing alphabets and building graphic signs
- TCP/IP communication (RS232 and RS485 on request)
- a light sensor adjusting the LED brightness to the weather conditions
- the product is 100% designed and manufactured in Poland

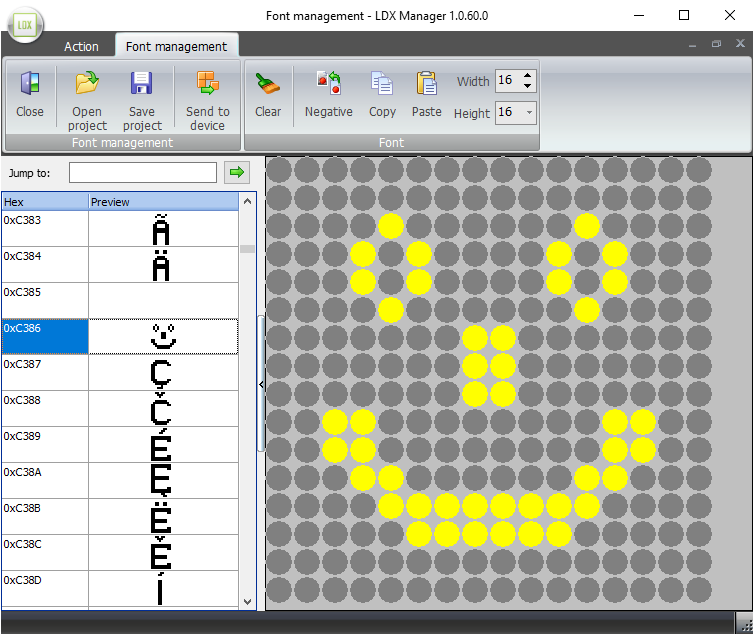

PC software: LDX-Manager
Free PC software is available for the display: LDx-Manager which allows for, among others: - automatic search of the display in the network - IP address configuration - font management
LED boards
Our offer also includes industrial LED boards. LED boards may be of any dimensions and of any working area arrangements (LED panels).
• Material of the side sections: Anodized aluminium
• Material of the rear covers: Raw aluminium
• Windshield material: polycarbonate
• Supply voltage of the board: 230 VAC
• Communication: TCP/IP, RS232, RS485
We only use top-class OSRAM LEDs in our boards.
The LED boards (electronics + housing) are 100% manufactured in Poland.
*Example of an order fulfilled: LED board with dimensions of 6 rows, 12 LED panels each
Technical specifications:
| CATEGORY | PARAMETER |
|---|---|
| Housing material | anodized aluminium |
| Front glass material | polycarbonate |
| Back cover gasket material | EPDM rubber |
| Tightness class | IP55 |
| Supply voltage | 230 VAC |
| Max. power consumption | 0,5A |
| Number of LEDs | 1024 |
| Maximum height of the sign displayed | 160 mm |
| Distance between LEDs | 10 mm |
| Communication | TCP/IP |
| Storage temperature | from -30 to +75 C |
| Operating temperature | from -20 to +60 C |
| Working humidity | 5 to 95% RH |
LDX dimensions
Ordering information
| PRODUCT | ORDER CODE |
|---|---|
| LDX - 04E | HDW-LDX-04E |
